Ballasted solar racking mounting system for flat roof, pv ballast mount

FOB Reference Price:Get Latest Price
US $0.066-0.076 / Watts | 1000 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wanhos Solar
Model Number:
Solar Roof Racking
Type:
solar roof mounting
Products Series:
Ballasted Solar Roof Racking
Install Site:
Low profile roof or open field
Tile Angle:
5-30deg
Max Wind Speed:
up to 60m/s
Snow Load:
up to 1.4KN/m^2
Material:
Aluminum alloy
Color:
Natural
Anti-corrosive:
Anodized
Warranty:
Ten years warranty
Duration:
More than 20 years
SupplyAbility
SupplyAbility:
150000 Kilowatt/Kilowatts per Month
Packaging & Delivery
Packaging Details
brown inner box, brown outer carton, wooden or metal pallets.
Port
Xiamen,China
Lead Time :
within 15 days after receiving 30% deposit

                  pv ballast mount

Product Description

 Benefits

1.Easy Installation.

The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.

The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.

3.High Accuracy.

Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.

4.Maximum Lifespan:

All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



(1) Overview of System Components

Ballast mounting systemPicture

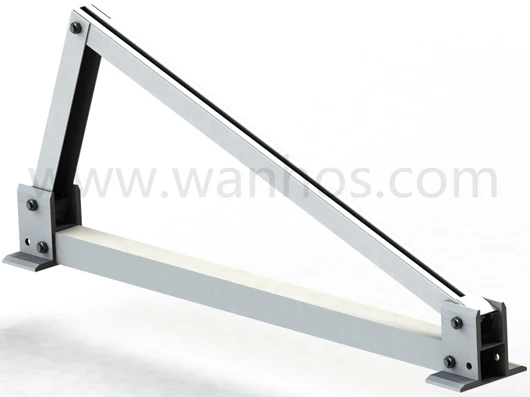

Ballat Bracketpv ballast mount

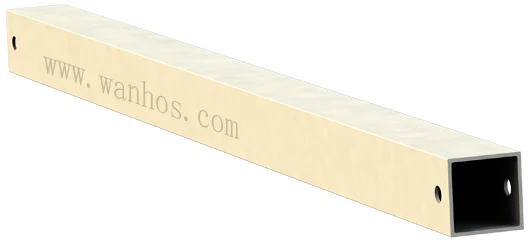

Contect Tubepv ballast mount
Ballast Panpv ballast mount

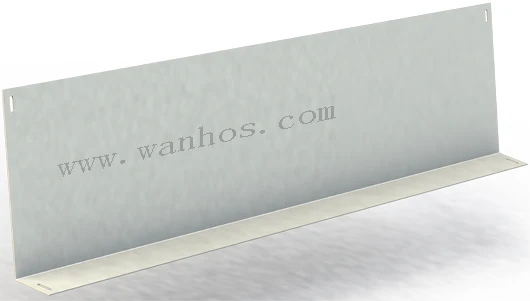

Wind Deflection Platepv ballast mount

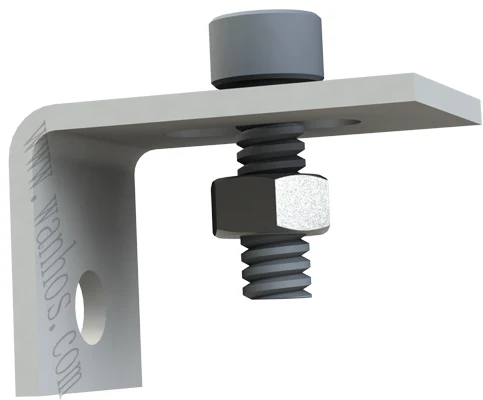

Bottom Frame Clamppv ballast mount
SR-Railpv ballast mount
Inter Clamp



(2)Technical Information

Products SeriesBallasted solar mounting system
Install SiteLow profile roof or open field
Tilt Angle5-30deg
Building Heightup to 20m
Max Wind Speedup to 60m/s
Snow Loadup to 1.4KN/m^2
StandardsAS/NZS 1170 & DIN 1055 & Other
MeterialAluminum alloy & Stainless steel
ColorNatural
Anti-corrosiveAnodized
WarrantyTen years warranty
DurationMore than 20 years



(3)Project for Ballasted solar mounting system

pv ballast mountpv ballast mount
pv ballast mountpv ballast mount
