Adjustable solar triangle bracket mounting rooftop system mount/ solar tri-bracket system

FOB Reference Price:Get Latest Price
US $0.06-0.11 / Watts | 1 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wanhos Solar
Model Number:
Adjustable solar triangle bracket mount
Type:
Roof Bracket
Products Series:
Adjustable solar triangle bracket mount
Material:
Al6005
Color:
Natural
Max Wind Speed:
up to 60m/s
Snow Load:
up to 1.4KN/m^2
Anti-corrosive:
Anodized
Warranty:
Ten years warranty
Duration:
More than 20 years
Packaging & Delivery
Packaging Details
Standard Carton Box, Wooden Pallet, Steel Pallet,
Port
Xiamen,China
Lead Time :
within15 days

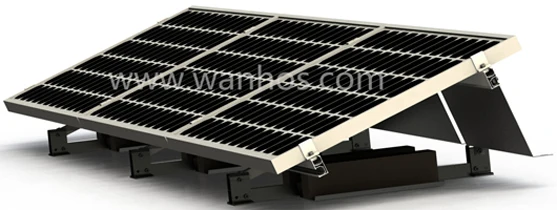

 Adjustable solar triangle bracket  mounting rooftop system mount

Product Description

 Benefits

1.Easy Installation.

The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.

2.Great Flexbilitity.

The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent compatibility.Designed as a universal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy.


Without the need for onsite cutting,the use of our unique rail extending allows the system to be installed with millimetre accuracy.
4.Maximum Lifespan:

All components are made of quality extruded aluminium, C-steel and stainless steel.The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Specification

Wanhos  Adjustable solar  triangle bracket mount PictureOptional Size
SR-Rail2-5Meter

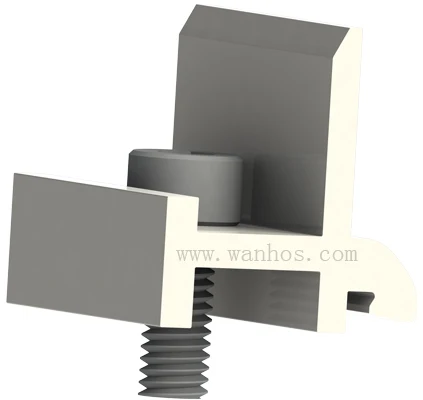

End Clamp30-60mm
Inter Clamp30-60mm
Rail Clamp10-40mm
Tri-Bracket many types

 Technology Information

Products SeriesAdjustable solar  triangle bracket mount
Max Wind Speedup to 60m/s
Snow Loadup to 1.4KN/m^2
StandardsAS/NZS 1170 & DIN 1055 & Other
MeterialAluminum alloy & Stainless steel
ColorNatural
Anti-corrosiveAnodized
WarrantyTen years warranty
DurationMore than 20 years



Relate Solar Roof System

Ballast solar system
Pitched of racking system
Packaging & Shipping



Company Information







FAQ

 In order to Save time and cost of communication, could you kindly offer the following necessary info.,

1. The dimension of the solar panel: ___________ mm (L*W*T)

2. How about the panel array: __________

3. Are there special requirements for wind speed and snow pressure?

__ m/s anit-wind speed and____KN/m2 snow load.

4. What’s the installation angle ( 5-10degree ,10-15 degree,15-30degree
