solar tracking system cost-effective ground solar mounting systems

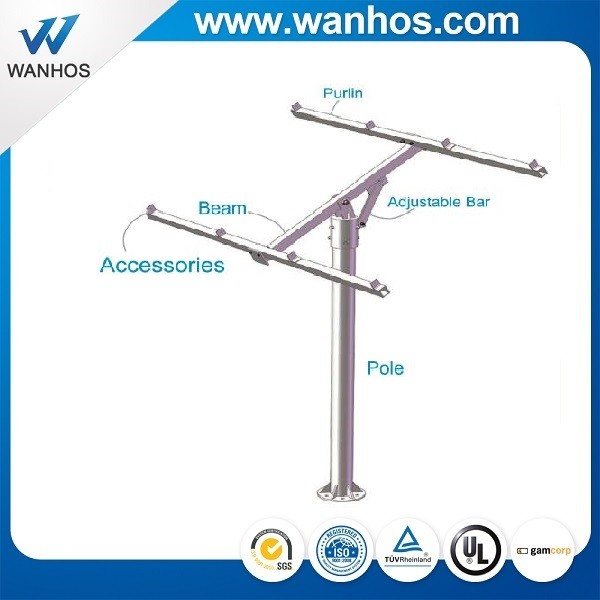

 Pole Mounting System-2.jpg



Introduce



solar tracking system is designed to install solar panels on a single pole. According to different conditions, several kinds of solutions are available.



Wanhos Solar Pole Mounting System takes the importance of safety and duration, the system have been calculated compatible with the structural machines and tested strictly.



Material used include galvanized steel and anodized aluminum, with great anti-corrosive suitable for outdoor using.

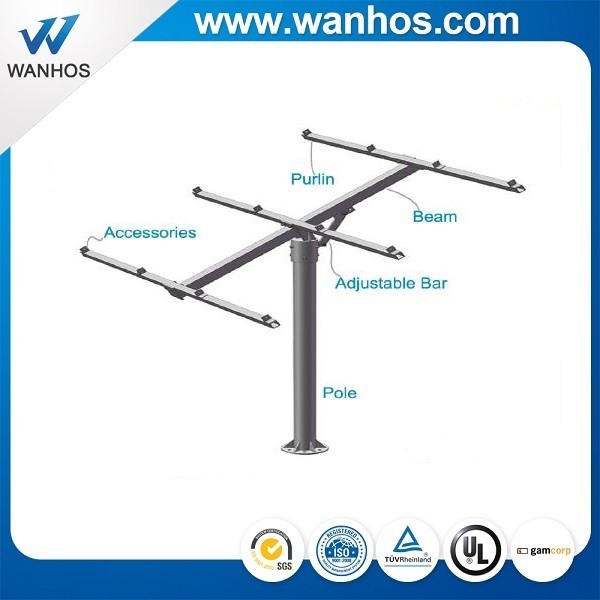

Components Overview



Pole Mounting System-6.jpg

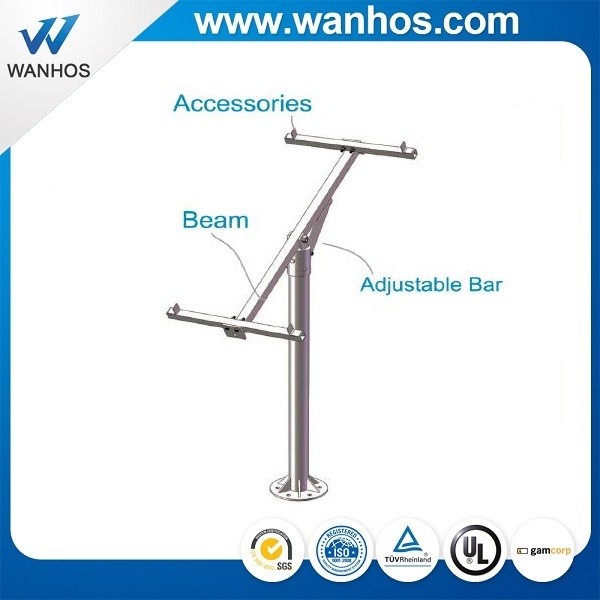

POLE MOUNT 2#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 3.2 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM02-01

Pole support for 2pcs module (1580 x 808mm)

Pole: OD89 x 1490mm x 1pc

Beam: 50 x 900mm x 1pc

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the beam and pole can be customized for different conditions.







Pole Mounting System-7.jpg

POLE MOUNT 6#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 8.3 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM06-01

Pole support for 6pcs module (1580 x 808mm)

Pole: OD140 x 1490mm x 1pc

Beam: 80 x 1300mm x 2pcs

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the purin,beam and pole can be customized for different conditions.





Pole Mounting System-8.jpg

POLE MOUNT 8#



Features

Material: Hot galvanized steel Q235

High integrated to reduce the bolt

Intallation aera of modules: up to 11.5 m2(wind speed < 45m/s)

Foundation: Concrete with pre-buried bolt


Item No.: WPM08-01

Pole support for 8pcs module (1580 x 808mm)

Pole: OD165 x 1490mm x 1pc

Beam: 100 x 1800mm x 3pcs

Adjustable bar:  1pc

Accessories and fastens



Note: The length of the purin, beam and pole can be customized for different conditions.





Benefits



Easy Installation: Intergrated design for the support pole minimizing the time and cost of installation.



Safty: Design and check the structure according to structural machines and installation acts.



Excellent Duration: For outdoor using, all the material selected with high class anti-corrosive protection.



Great Flexibility: The angle can be adjusted according to the actual needs in the installation site.

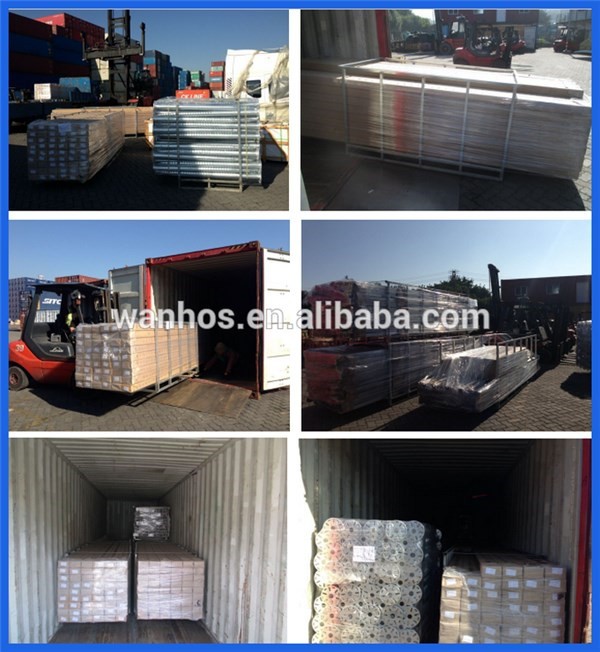

Packaging & Shipping

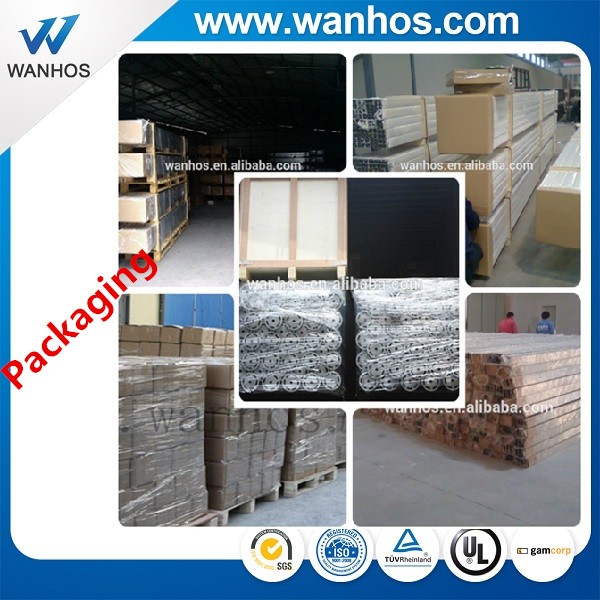

Packaging : Pack in  carton box than in pallet




Shipping: Around 7-10 days after order confirmed

container

Our Services



Warranty: 10 years

OEM / ODM: Accept customized



Company Information

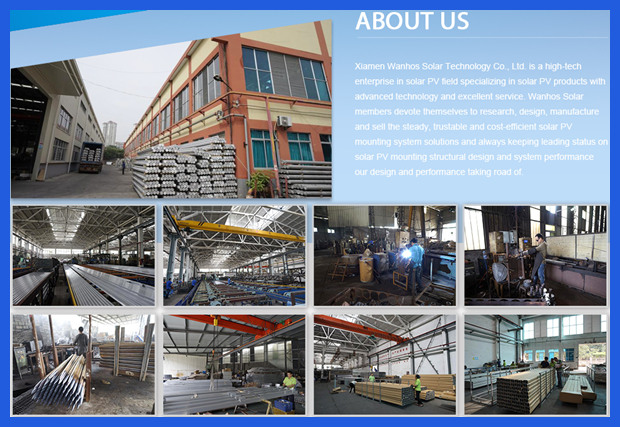

About us

Xiamen Wanhos Solar Technology CO., Ltd is a high-tech enterprice in solar PV field specializing in solar PV products with advance technology and excellent services.



Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions.



As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than 100 countries and regions since it established.



company information



PV Exhibition

11

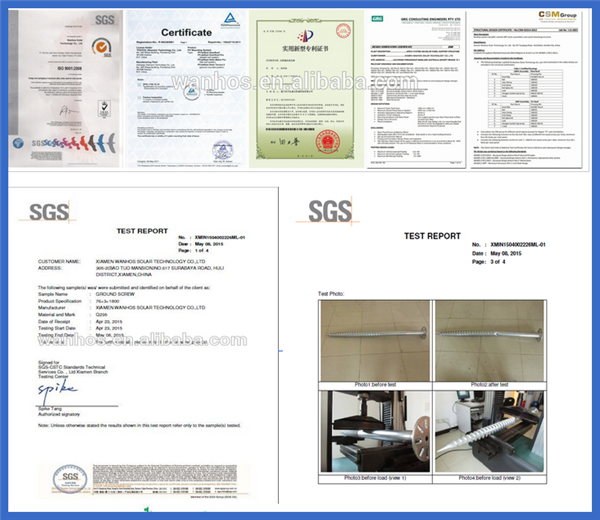

Certificates

Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008, CP, APQP, FMEA, MSASPC etc international quality manage system in all phase including R&D, manufacturing, marketing and after service.



ground screw - certificate

FAQ

Below information are necessary for us to design and quote.

PV panel dimension?    ___mm Length * ___mm Width * ___mm Thickness

Your panle layout?    2 * N / 4 * N/......

Max wind speed?      ___m/s

Snow Load?      ___KN/M2

Tilt angle?     ___deg
Ground clearance to module bottom?    ___mm

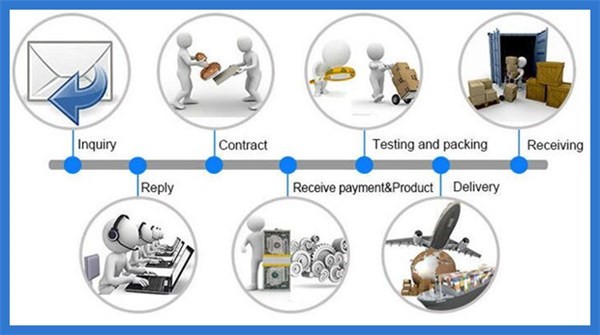

Trading Process
