aluminum solar structures ground solar mounting

FOB Reference Price:Get Latest Price
US $0.07-0.12 / Watts | 1000 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wanhos Solar
Model Number:
Ground Solar Mounting
Type:
Ground Mount
Name:
Ground Solar Mounting System
Materials:
Aluminum Alloy & Steel
Anti-Corrosive:
Anodized & Galvanized
Standards:
AS/NZS1170 and others
Max Wind Speed:
Up to 60m/s
Max Snow Load:
Up to 1.4KN/m^2
Color:
Natural
Warranty:
Ten years warranty
Duration:
More than 20 years
Moudle Application:
Framed and Frameless
Supply Ability
Supply Ability:
15000 Kilowatt/Kilowatts per Month
Packaging & Delivery
Packaging Details
by pallets or according to your request
Port
Xiamen, China
Video Description



Product Description

 Aluminum solar structures ground solar mounting

1.Specification for Ground Solar Mounting system

Material: Aluminum Alloy 6005-T5



2.Features for  Ground Solar Mounting system

Easy Installation: The innovative Wanhos solar rail and D-modules have greatly simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard toolkits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.



Great Flexibility: The Wanhos solar mounting system has mounting accessories designed for use on almost every roof and ground with excellent

compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.



High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.



Maximum Lifespan: All components are made of quality extruded aluminum, C-steel, and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.



Guaranteed Durability: Wanhos roof mounting provides a guarantee of 10 years on the durability of all components used.

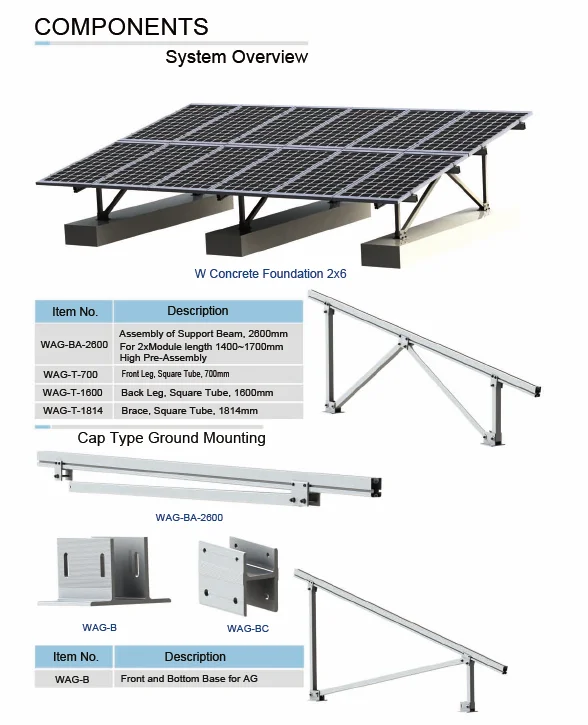

3. Details of  Ground Solar Mounting system

aluminium solar structures

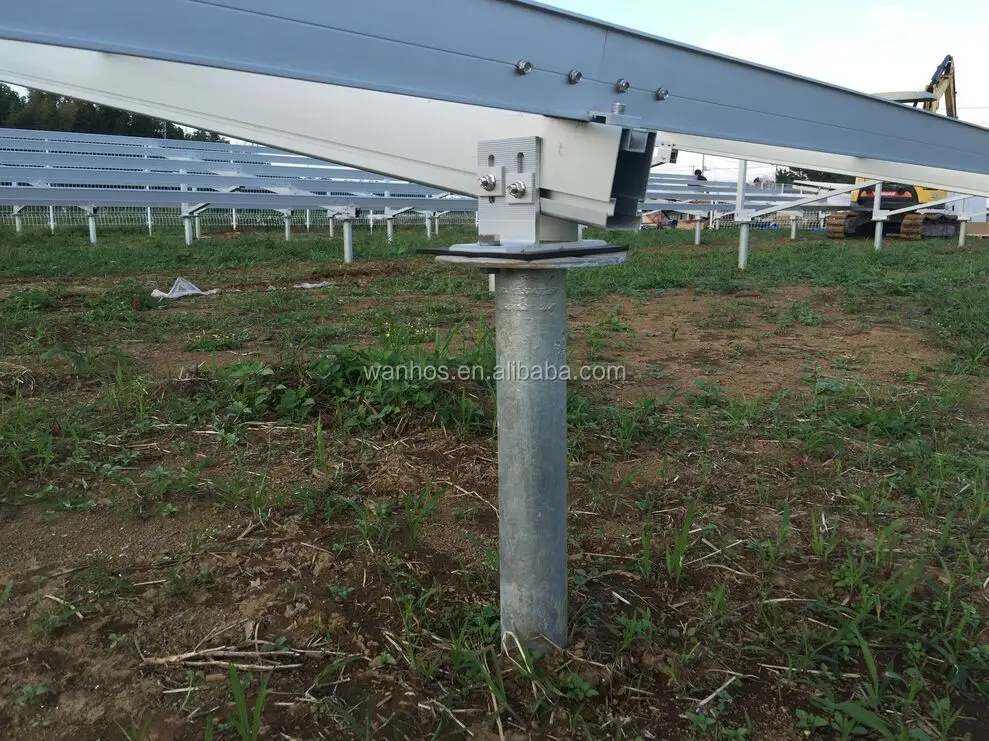

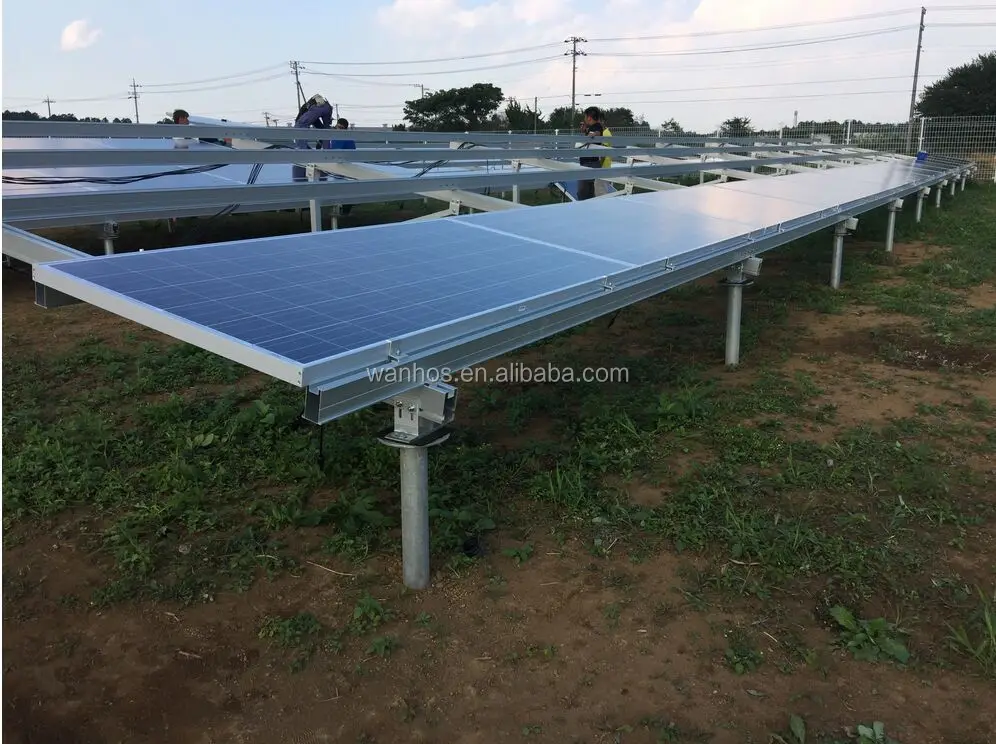

4.Project Photos of Ground Solar mounting system















Company Information



5.Certification



FAQ



Necessary info. for us to design and quote

•What is your PV panels dimension?_____mm Length x_____mm Width x____mm Thickness

•How many panels are you going to mount? _______Nos.

•What is your planned PV assembly block? ________Nos. in a row

•How is weather there, such as wind speed and snow load?

     ___m/s anit-wind speed and____KN/m2 snow load.

•What is the tilt angle?__________degree

•What is the height from the lowest point of the panel to the ground?________mm.
