triangle mounting brackets with adjustable angle

FOB Reference Price:Get Latest Price
US $0.07-0.11 / Watts | 1000 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wanhos Solar
Model Number:
Adjustable roof bracket
Type:
Roof Bracket
Installation Site:
roof or ground
Materials:
Aluminum Alloy & Steel
Anti-Corrosive:
Anodized & Galvanized
Standards:
AS/NZS1170 and others
Max Wind Speed:
Up to 60m/s
Max Snow Load:
Up to 1.4KN/m^2
Color:
Natural
Warranty:
Ten years warranty
Duration:
More than 20 years
Specification:
Normal
Supply Ability
Supply Ability:
15000 Kilowatt/Kilowatts per Month
Packaging & Delivery
Packaging Details
by pallets or according to your request
Port
Xiamen, China
Lead Time :
Shipped in 15 days after payment

triangle mounting brackets with adjustable angle



Product Overview

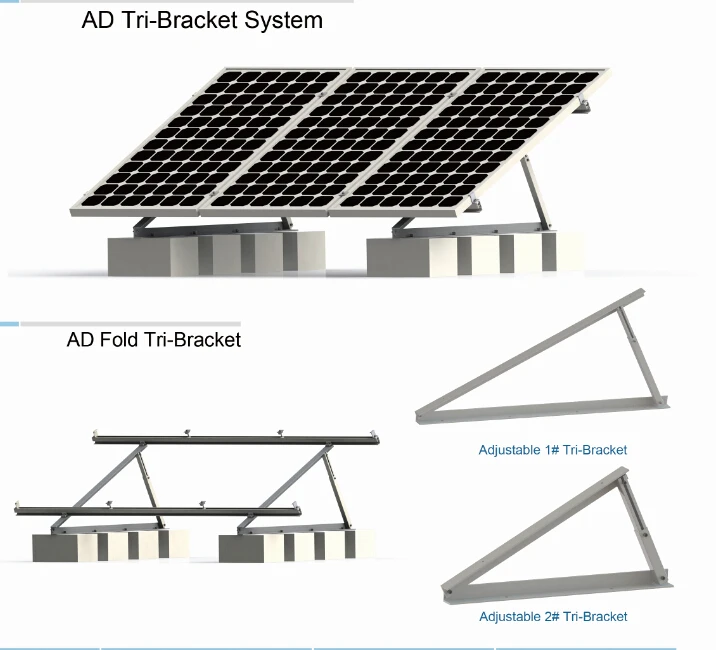

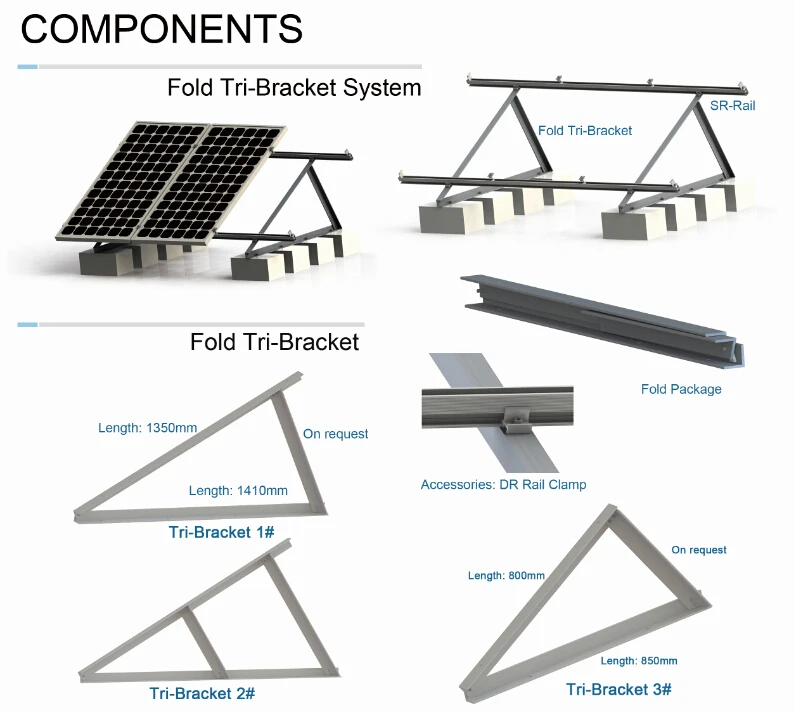

Wanhos Adjustable triangle mounting bracket system is developed to mount the module tilt a certain angle on a flat roof or ground. You can have the fixed or adjustable angle solution as 10-15deg, 15-30deg and 30-60deg according to your exact requirement. Wanhos Solar series product have the innovated aluminum rail, D-module, clamps and legs which can be pre-assembled to make the installation easy and quick for saving your labor cost and time. Besides, the customized length of rail will not require onsite weld and cut, keeping the appearance entirety, structural strength and anti-corrosive performance.

triangle mounting brackets with adjustable angletriangle mounting brackets with adjustable angletriangle mounting brackets with adjustable angletriangle mounting brackets with adjustable angle

Technical Parameters

Install Site  : Flat roof or open field
Tilt Angle  : 10deg ~ 60deg
Building Height : up to 20m
Max Wind Speed : up to 60m/s
Snow Load : up to1.4KN/m2
Standards : AS/NZS 1170 & DIN 1055 & Other
Material : Aluminum alloy & Stainless Steel
Color : Natural
Anti-corrosive : Anodized
Warranty :Ten years warranty
Duration : More than 20 years

Core Strengths

Easy Installation
D-module can be put into Wanhos ER Rail from any position. so the parts can be pre-assemblyed on factory to save your install time on site.

Flexibility and Compatible

Wanhos Rail and its accessories can be installed with the mostsolar panels on the difference condition.

Safety and Reliability

The racking systems can stand up to the extreme weather complied with the AS/NZS 1170 and other international structure load standards by skilled engineers. The main support components have also been tested to guarantee its structure and load-carrying capacity.



Packaging & Shipping













Company Information

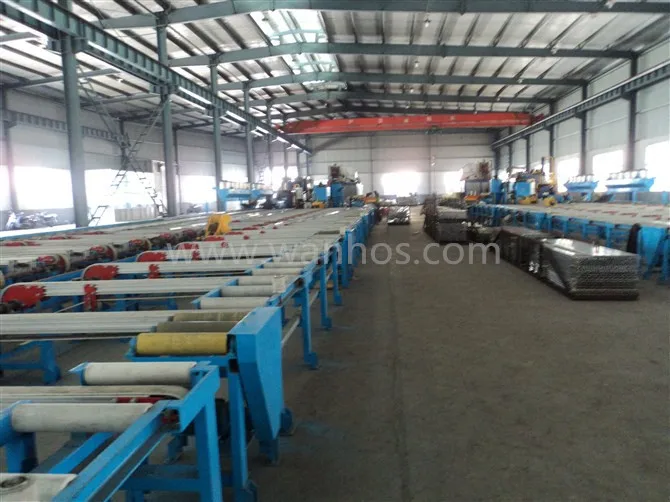

Xiamen Wanhos Solar Technology Co., Ltd. is a high-tech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and cost-efficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than 100 countries and regions since it established.





Certificate

FAQ



•What is your pv panels dimension?_____mm Length x_____mm Width x____mm Thickness

•How many panel are you going to mount? _______Nos.

•What is the tilt angle?__________degree

•What is your planned pv assmebly block? ________Nos. in a row

•How is weather there,such as wind speed and snow load?

     ___m/s anit-wind speed and____KN/m2 snow load.
