Solar Mount Ground Screw

FOB Reference Price:Get Latest Price
US $11-19.5 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
Wanhos Solar
Model Number:
Ground Screw
Type:
Ground Screw
Products Series:
Ground Screw
Anti-corrosive:
galvanized
tandards:
AS/NZS1170
Warranty:
10 years
Material:
Q235B
Pipe Diameter:
50~140mm
Pipe Length:
1000~2000mm
Pipe Thickness:
2~4mm
Standard:
GB50021-2001 GB50007-2002
Supply Ability
Supply Ability:
15000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
brown inner box, brown outer carton, wooden or metal pallets.
Port
Xiamen,China

Solar Mount Ground Screw

Solar Mount Ground Screw



 Solar Mount Ground ScrewSolar Mount Ground Screw



                                                                                 Solar Mount Ground Screw



Brief Introduction

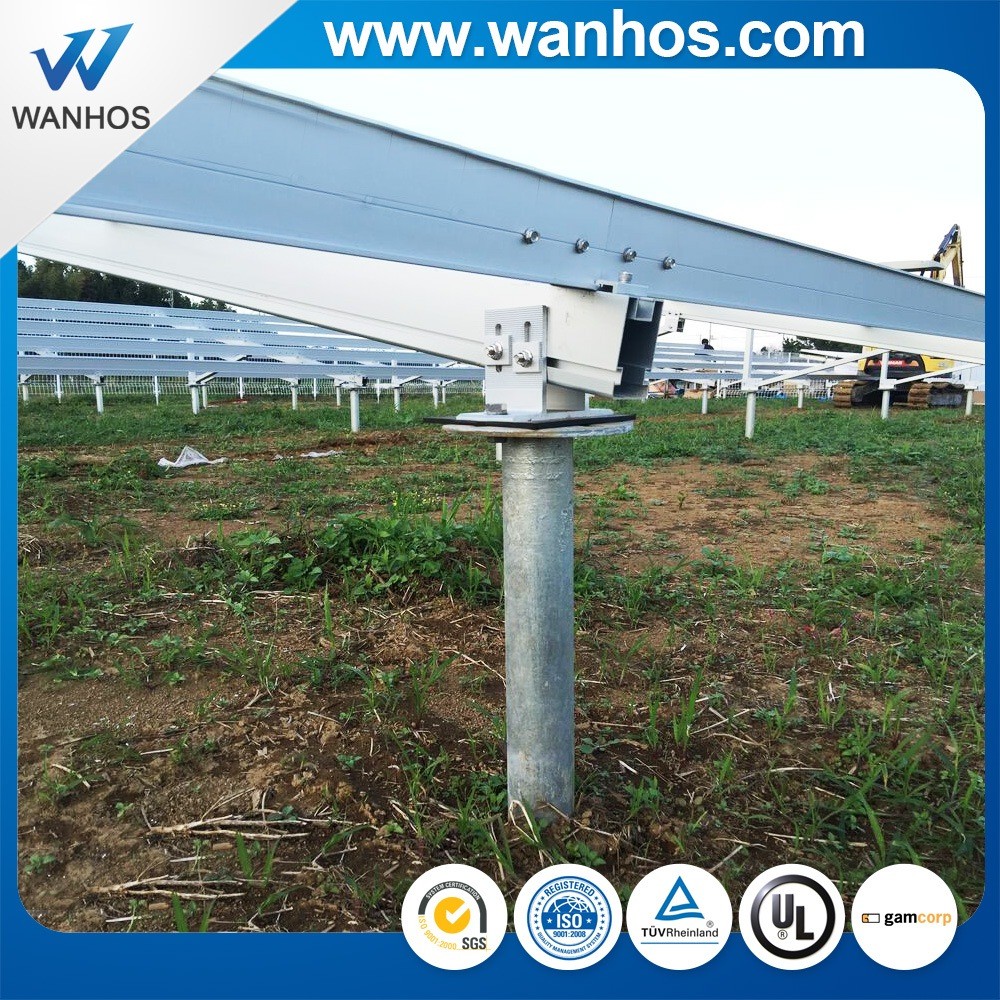

Wanhos Solar Ground Screw is the new foundation type for PV ground mounting system.The application of this solution is widely. It can minimize the impact on the environment and it is simple and fast on installation, which saves installation time greatly, save installation costs.



Wanhos Solar Ground Screw has a unique Oblique spiral design, which can greatly ensure the stability and robustness when withstanding static load.

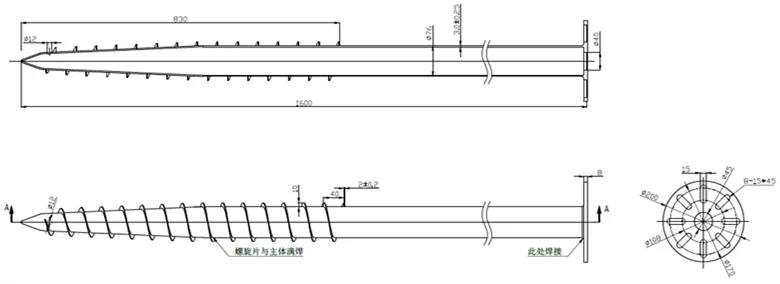

Drawing

                         Item No. WN76-1600-T3 Drawing



Technical Information

Material: Q235B



Install site: All type of soil



Pipe Diameter: 48mm, 76mm, 89mm & 114mm



Pipe Length: 600~3000mm



Pipe Thickness: 2mm, 2.5mm, 3mm & 4mm



Surface Treatment: Hot-galvanization



Details







Products Processing





Package Details







Solar Mount Ground Screw





Xiamen Wanhos Solar Technology Co., Ltd. is a hightech enterprise in solar PV field specializing in solar PV products with advanced technology and excellent service. Wanhos Solar members devote themselves to research, design, manufacture and sell the steady, trustable and costefficient solar PV mounting system solutions. As one of the largest PV solar products exporter in China, the pioneering products have been installed in more than100 countries and regions since it established.



Management Concept



Wanhos Solar brought forward the standardized and internationalized management concept at the beginning of its establishment, positively brought in and strictly applied ISO9001:2008,CP, APQP,FMEA,MSA, SPC etc international quality manage system in all phases including R&D, manufacturing, marketing and after service.
